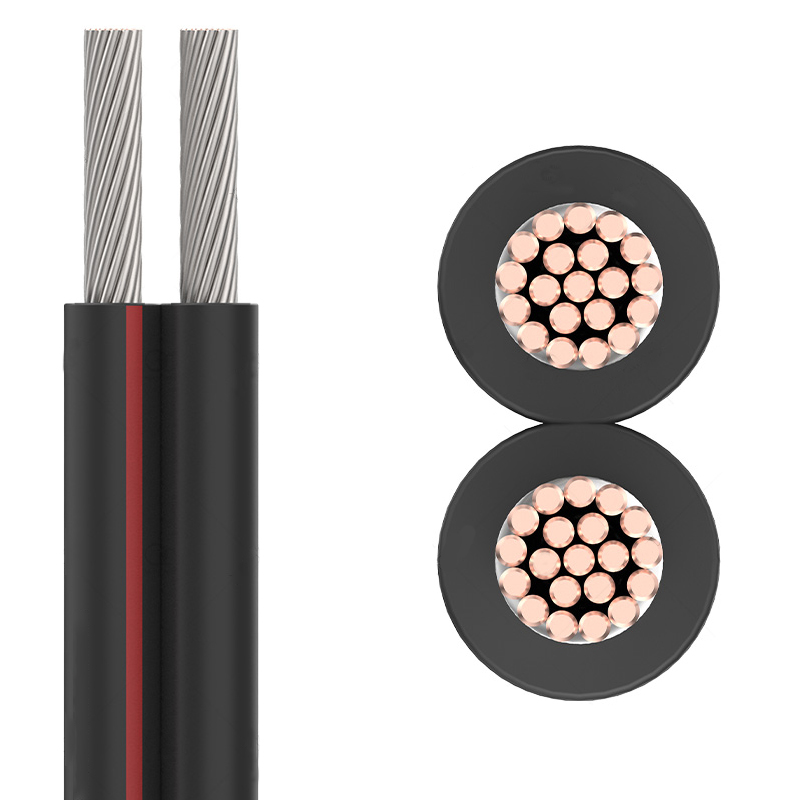

Cable fotovoltaico unipolar/bipolar

El cable fotovoltaico [PV] es un cable especial utilizado para los módulos solares fotovoltaicos del sistema. Presenta características de resistencia a la intemperie, a las altas temperaturas y al desgaste, y tiene una vida útil más larga.
状态：
Núm.:
Consultar Añadir a la cesta

Parámetros del producto


APPLICATIONS

which is designed for connecting photovoltaic system components inside and outside of
buildings and equipment with high mechanical requirements and extreme weather
conditions. It has the characteristics of UV resistance,wears resistance, and aging
resistance, and the service life is more than 25 years.

CONSTRUCTION

Conductor: Tinned fine copper strands acc.to VDE 0295/IEC 60228,Class 5.
Insulation: XLPO, flame retardant, halogen free electron-beam cross-linked.
Jacket:XLPO, flame retardant, halogen freeelectron-beam cross-linked.
Insulation color: black
Jacket color: black or  red

TECHNICAL CHARACTERISTICS

Voltage Rating:  DC:1500V/ AC:1.0 kV
Insulation resistance : 1000Ω/km
Test voltage:AC6.5kv 50Hz 5min
Temperature Rating:-40°C--+90℃
Flame retardant:EN 60332.1-1
Standards: RoHS CE Tuv


cross section
(n*mm2)		Conductor
(mm)		Outer
(mm)		Current-carrying
capacity[A]at 60℃		Conductor resistance
kΩ/km at 20℃		Cable Code
1*1.51.44.23013.7PV302515
1*2.51.85428.21PV502525
1*4.02.25.2555.09PV562940
1*6.02.85.8703.39PV842960
1*10.04.0 7.5981.95PV142301
1*16.05.0 8.91321.24PV228301
1*25.06.210.91760.795PV361302
1*35.07.312.82180.565PV525303
1*50.08.814.32800.393PV720305
1*70.011.0 16.53500.277PV988307
1*95.012.318.24100.210 PV134930
1*120.014.120.24800.164PV169130
